A light kit can look like an easy upgrade until you are staring at two connectors that almost fit, wondering whether one wrong plug will take out your display, controller, or factory light circuit. This e-bike lighting connector guide cuts through that problem. Before you order, connect, or modify anything, identify what your bike actually uses and make sure the light kit is built for that system.
The goal is simple: brighter visibility, a cleaner look, and no mystery wiring. For Macfox riders especially, the right model-specific connector setup can mean the difference between a quick install and an afternoon spent chasing adapters that were never meant to work together.
E-Bike Lighting Connector Guide: Start With the Bike
The connector on your light is only one part of compatibility. A plug can physically match another plug while carrying a different voltage, using a different pin layout, or communicating with a controller in a different way. Never assume that matching shapes means matching electronics.
Start by confirming your exact e-bike model and version. An X7, X7L, X1S, X2, and M16 may have different mounting points, wire routing, stock-light locations, or accessory connections. Even within one model family, production changes can affect what sits behind the head tube or under a cover.
Look at the connector already on the bike, not just photos of a connector online. Check its shape, pin count, keyway, wire colors, and whether it has a threaded locking collar or simple push-fit design. If your factory headlight is connected, trace that lead back carefully and inspect the plug without pulling on the wires.
If the bike does not have a dedicated light output, that does not automatically mean you need to cut into the battery wiring. It means you need a lighting solution designed for the available power source and the way you want the lights to operate. That could be a model-specific kit, a controlled accessory output, or a separate system. The cleanest answer depends on the bike.
Know What the Connector Is Actually Doing
Most riders focus on plug style first. Voltage, polarity, and circuit capacity deserve just as much attention.
A basic two-wire connector usually supplies power and ground. That sounds straightforward, but polarity still matters. Reversing positive and negative can damage LED drivers or create a no-light situation that looks like a bad product when the issue is the connection.
Three-wire and four-wire setups may add features such as a switched power lead, high/low beam control, running light operation, turn signal functions, or communication with a display or controller. More pins do not always mean more power. They usually mean more functions, and those functions must line up correctly.
Voltage is the next checkpoint. Many e-bike battery systems operate at a much higher nominal voltage than the LED component itself. A proper light kit may include a driver or converter that steps voltage down to the level the LEDs need. Connecting a low-voltage light directly to a high-voltage battery circuit is not an upgrade. It is a fast way to ruin a light.
Current draw matters too. A factory accessory output is designed for a specific load. Add a light bar or multiple LEDs that pull more power than the circuit is rated for, and you may blow a fuse, trigger a controller fault, or stress the wiring. Brighter is not automatically better if the bike cannot safely support it.
Common E-Bike Light Connector Types
There is no single universal e-bike lighting connector. That is why generic listings that promise a fit for every bike deserve a closer look.
Waterproof circular connectors are common on e-bikes because they seal well and often use alignment arrows or a keyed shape. Some screw together with a locking collar. Others push together and rely on a tight seal. They can look nearly identical across brands while using different pin counts or pin assignments.
Small rectangular plugs are also common inside frames, behind headlight brackets, or under controller covers. These may be JST-style connectors or another compact harness plug. They are useful in tight spaces but can be easier to disconnect accidentally if they are not secured correctly.
Some bikes use proprietary harnesses that are purpose-built around the factory controller and display. In that case, a universal light may require an adapter, an independent power setup, or more electrical work than most riders want. A dedicated kit made for that platform is usually the cleaner move.
Why Model-Specific Fitment Wins
Universal lighting kits have a place. They can work well for custom builds, older e-bikes, or riders who already know their way around voltage converters, connectors, and mounting hardware. The trade-off is that you are responsible for confirming every part of the setup.
A model-specific kit removes the most common failure points: the wrong plug, awkward wire length, improvised mounting, and controls that do not behave as expected. It is built around the bike, not around a guess.

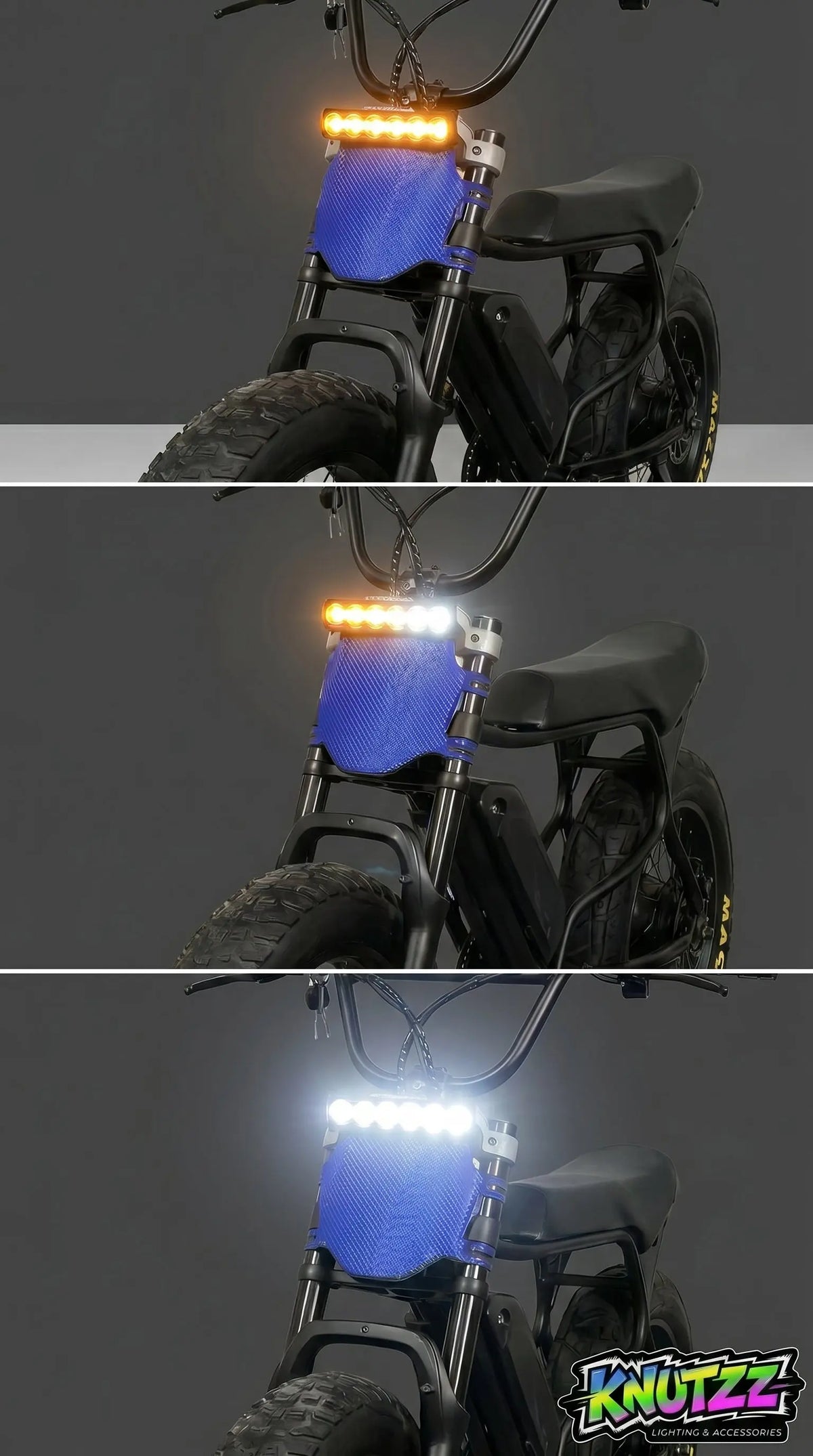

That is the appeal of plug-and-play lighting for popular Macfox platforms. A properly matched kit should connect where it is meant to connect, route cleanly, and let you keep the bike looking factory-level tidy. Knutzz focuses on that fitment-first approach so riders can upgrade the look, visibility, and personality of their bike without turning a lighting project into custom electrical work.
Still, model-specific does not mean skip the check. Verify the product's stated fitment against your exact bike before opening connectors or removing panels. If your bike has aftermarket controller work, a replacement harness, or previous electrical modifications, treat it as a custom setup even if the frame badge matches the listed model.
Check These Details Before You Plug In
Before installing any e-bike lighting kit, inspect these four details:
- Connector match: Confirm the plug style, number of pins, keyed orientation, and locking method. Never force a connector because it is close.
- Electrical match: Confirm the voltage range, polarity, and expected power draw for both the bike output and the light kit.
- Function match: Make sure the connector supports the function you expect, whether that is switched power, dual beam operation, color-changing control, or a simple always-on light.
- Physical match: Check wire length, mount location, steering clearance, suspension movement, and protection from tire spray or pinch points.
Install Without Creating New Problems
Power the bike down before handling connectors. If the manufacturer provides a battery-disconnect procedure, follow it. Do not work around a live circuit just because the plug is easy to reach.
Open covers slowly and keep track of hardware. E-bike plastic panels, cable guides, and rubber grommets are often doing more than they appear to do. A grommet keeps water and dust out. A cable guide prevents a wire from rubbing against the fork or tire. Put them back where they belong.
When connecting a waterproof plug, line up its arrows, flats, or keys first. Press straight in without twisting the wire. If it uses a threaded collar, tighten it by hand until secure. Over-tightening can damage threads or seals, while leaving it loose invites water and vibration into the connection.
Route the harness with enough slack for full handlebar movement. Turn the bars all the way left and right before finalizing the cable path. On full-suspension bikes, also check travel at the front and rear if the wiring runs near moving components. A wire that looks clean on the stand can get stretched, pinched, or cut on the road.
Avoid zip-tying a harness directly against sharp metal edges. Use the bike's existing routing when possible, and keep wiring away from brake rotors, chains, spokes, and hot components. Clean routing is not just about looks. It protects the connection and keeps your upgrade reliable.
Test the Lights Before the First Ride
Once everything is connected and secured, power the bike on and test every available mode while the bike is stationary. Check low and high beam if applicable. Test color modes only where legal and appropriate for your riding environment. Confirm that the lights respond to the stock controls only if the kit is designed to integrate with them.
Pay attention to flicker, delayed startup, dim output, or a display error. These signs can point to a loose connection, incompatible voltage, incorrect pinout, or an overloaded accessory circuit. Shut the system down and inspect the setup rather than repeatedly cycling power and hoping it clears.
After the first short ride, check the mounts and wire routing again. Vibration can reveal a loose bracket or a cable that contacts the frame at full steering lock. A five-minute recheck is part of a clean install, not an extra chore.
The best lighting upgrade should feel simple after it is installed: hit the control, see the road, get noticed, and ride with a setup that looks like it belongs on your bike.
