A bright light is only half the upgrade. Put it in the wrong spot and you can still miss potholes, throw glare into traffic, or end up with a bike that looks like an afterthought. This e-bike lighting placement guide shows where your lights should go, how to aim them, and what changes when you ride city streets, trails, or fast mixed routes.
The goal is simple: light the space you need to ride through, make your bike easy to spot, and keep the install clean. On a Macfox or any similar moped-style e-bike, good placement also protects the bike’s aggressive, intentional look. You want the setup to look built for the bike, not strapped on as an emergency fix.
Start With the Job of Each Light
Before choosing a mounting point, separate seeing from being seen. Your front headlight helps you read the road, spot turns, and react to debris. A second front-facing light bar can widen that usable field and make the bike stand out from farther away. Rear lights tell drivers where you are and how wide your bike appears. Side-facing or accent lighting adds presence at intersections, where side visibility matters most.
Trying to make one light handle every job usually creates compromises. A super-bright front light mounted too high may get attention, but it can blind oncoming riders and drivers. A low-mounted rear light may be visible from directly behind yet disappear behind a tire, rack, jacket, or seat when viewed from an angle.
Build the setup around your normal rides. A commuter who runs lit streets needs conspicuity and controlled forward light. A rider coming home on dark roads needs more distance and a wider beam. If you ride both, a dual-beam setup gives you more flexibility than one oversized light pointed straight ahead.
Front Light Placement: Height, Center, and Beam Control

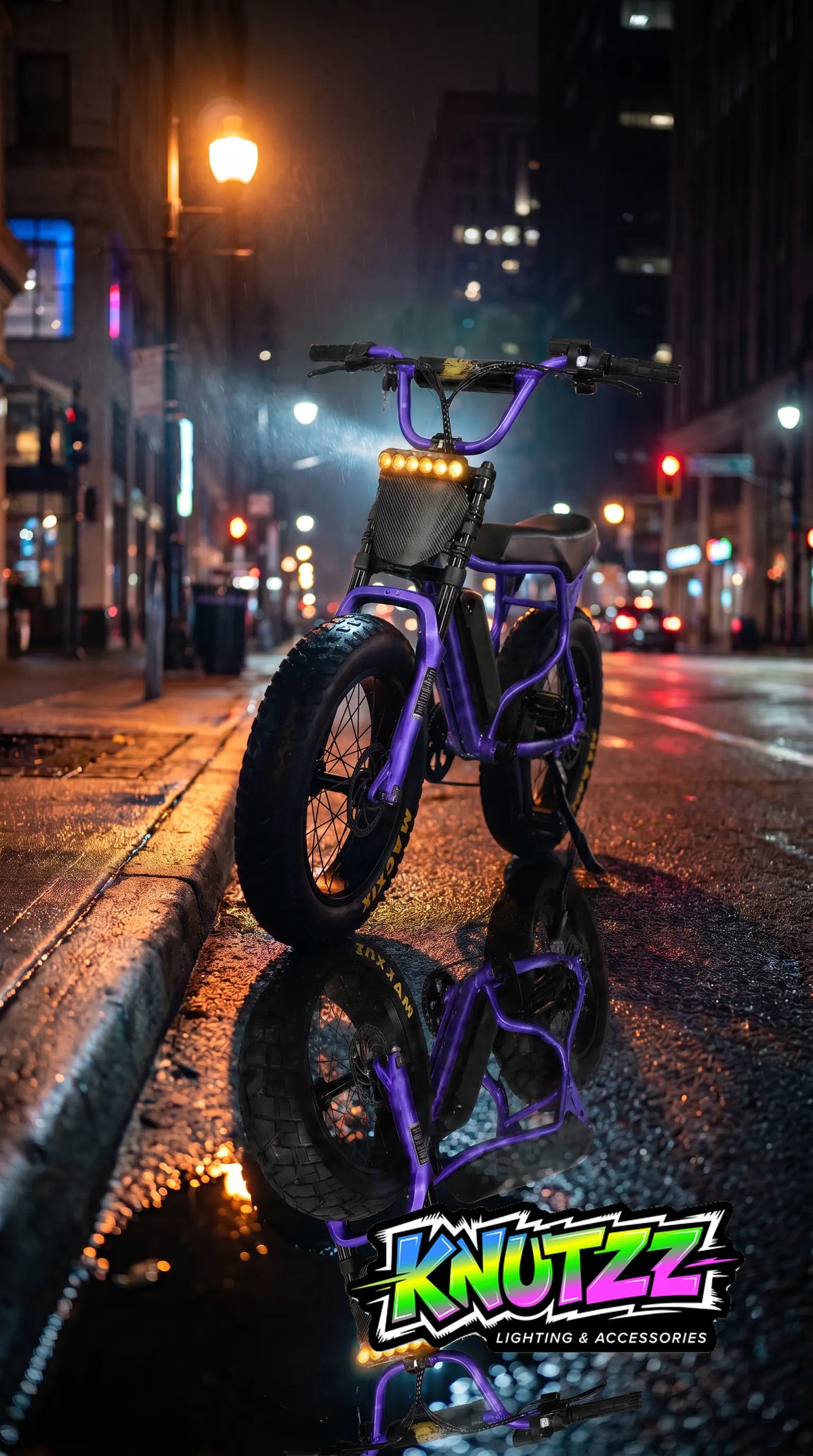

For most e-bikes, the strongest starting point is centered on the front of the bike, mounted above the front wheel and below eye level. On many moped-style frames, the front fork area, handlebar center, or a model-specific front mounting point gives you a stable, clean location.
Center mounting matters because it makes the beam predictable. A light pushed far to one side can leave a darker area in the opposite lane of travel and make depth harder to judge. It can also look uneven from the front. If your bike uses two lights, place them symmetrically whenever the frame and mounting hardware allow it.
Height is a trade-off. A higher light projects farther and is less likely to be blocked by the front tire, fender, or cargo. But too high means more glare, especially with a powerful LED bar. A lower light can put more usable brightness on the pavement and reduce glare, but it may not reach as far and can take more abuse from water and debris.
For a street-focused setup, mount the light securely, then aim it slightly downward. On level ground, the brightest part of the beam should land on the road ahead, not in the windshields of cars. Start with the beam reaching roughly 20 to 30 feet in front of the bike, then test it at your normal speed. Faster riders need a little more reach, but a long, flat beam is not automatically better if it leaves the near road dark.
Avoid These Front-Mounting Mistakes
Do not mount a powerful light where cables, a brake line, or a number plate can block the beam. Check your beam while sitting on the bike, not only while it is on a stand. Suspension sag changes the angle, and so does the rider’s weight.
Also avoid mounting a light where the front wheel can throw a constant stream of grime directly onto the lens. A few inches of extra protection can make a bigger difference than adding more output. After a wet ride, a dirty lens turns a bright light into a hazy glow.
If your bike has stock controls for lighting, preserving that clean control experience is worth prioritizing. A plug-and-play, model-specific kit keeps the front end organized and avoids the loose switches, exposed wiring, and improvised connections that can ruin an otherwise clean build.
Rear Light Placement: Make Your Bike Read Clearly
The best rear-light position is high enough to clear the rear tire and low enough to avoid being hidden by your body, cargo, or a tall seat. A centered mount under the seat, at the rear frame, or near the back of a rack is usually the right call. The light should face straight back, not up toward the sky or down at the tire.
Drivers do not need to study your bike to understand what they are seeing. They need to recognize it quickly. A bright, centered red rear light gives them an immediate reference point. If it also has a brake-light function, make sure the change in brightness is obvious from a following car’s position.
Check visibility from several angles. Stand directly behind the bike, then move to the left and right as if you were approaching it in a lane. A rear light that looks great in the garage can become hidden by a fender, tire, or frame tube outdoors. If you carry a backpack or use a rear rack, test with those in place too.
Mounting a rear light extremely low is tempting because it is easy, but it is rarely the best choice. It sits closer to spray, road grit, and shadows. It can work as a secondary light, especially for extra width or redundancy, but it should not be your only signal to traffic.
Side Visibility Matters at Intersections
Most close calls do not happen when a driver is directly behind you. They happen when someone turns across your path, pulls out from a side street, or enters an intersection without judging your speed correctly. That is where side visibility earns its place.
Color-changing accent lights and side-facing lighting can make the bike more recognizable from an angle, especially at dusk. They add personality, too, but treat them as support lighting rather than a replacement for a white front light and a red rear light. For public-road riding, check your local and state rules before using colors or flashing modes. Rules vary, and blue or red lighting can create problems because those colors may be restricted or confused with emergency vehicles.
Keep accent lighting balanced. A clean, even glow along the frame can look sharp. Random strips placed wherever there was empty space can distract from the bike and create unnecessary glare for you or others. Less hardware, better placement, and tidy routing win every time.
Match Your E-Bike Lighting Placement to How You Ride
Your route should influence the final adjustment. Urban riders benefit from a controlled, downward front beam that does not bounce light off every reflective sign. Oncoming traffic, pedestrians, and bike-lane users are close, so glare control is part of riding responsibly.
For darker suburban roads, aim for a wider pool of light near the bike with enough forward reach to identify rough pavement early. You need time to react, especially on a heavier e-bike that takes longer to stop than a lightweight pedal bike.
Trail riding is different again. You may want more forward throw and a wider beam to catch turns, roots, and loose surfaces. But do not run a high-output trail setting around pedestrians, neighborhoods, or shared paths. What works in an empty trail corridor can be harsh and unsafe in a crowded space.
If you use a front basket, rack, or cargo bag, inspect the beam after loading it. Cargo can cast a shadow directly into the area you most need to see. The same goes for handlebar-mounted phones, mirrors, and action cameras. Every add-on competes for clean space at the front of the bike.
Install Clean, Then Test at Night
A solid light mount should not rotate when you hit bumps, turn hard, or ride over rough pavement. Tighten hardware to the manufacturer’s guidance and recheck it after your first few rides. Vibration can loosen anything that was installed in a hurry.
Route wires with enough slack for steering and suspension movement, but not so much that they hang near the wheel, fork, chain, or brake components. Follow existing cable paths where possible. The finished setup should look simple because it is organized, not because you ignored the details.
Then do a real-world test after dark. Ride a familiar block, stop at different distances from a wall, and look at the beam pattern. Have a friend stand or drive behind the bike to confirm rear visibility. Make small adjustments one at a time. A few degrees of tilt can change whether your light helps you see the road or just lights up everything except it.
A clean lighting upgrade should make every ride feel more confident the moment the sun drops. Place it with purpose, aim it with respect for everyone sharing the road, and let the bike look as dialed as it rides.
