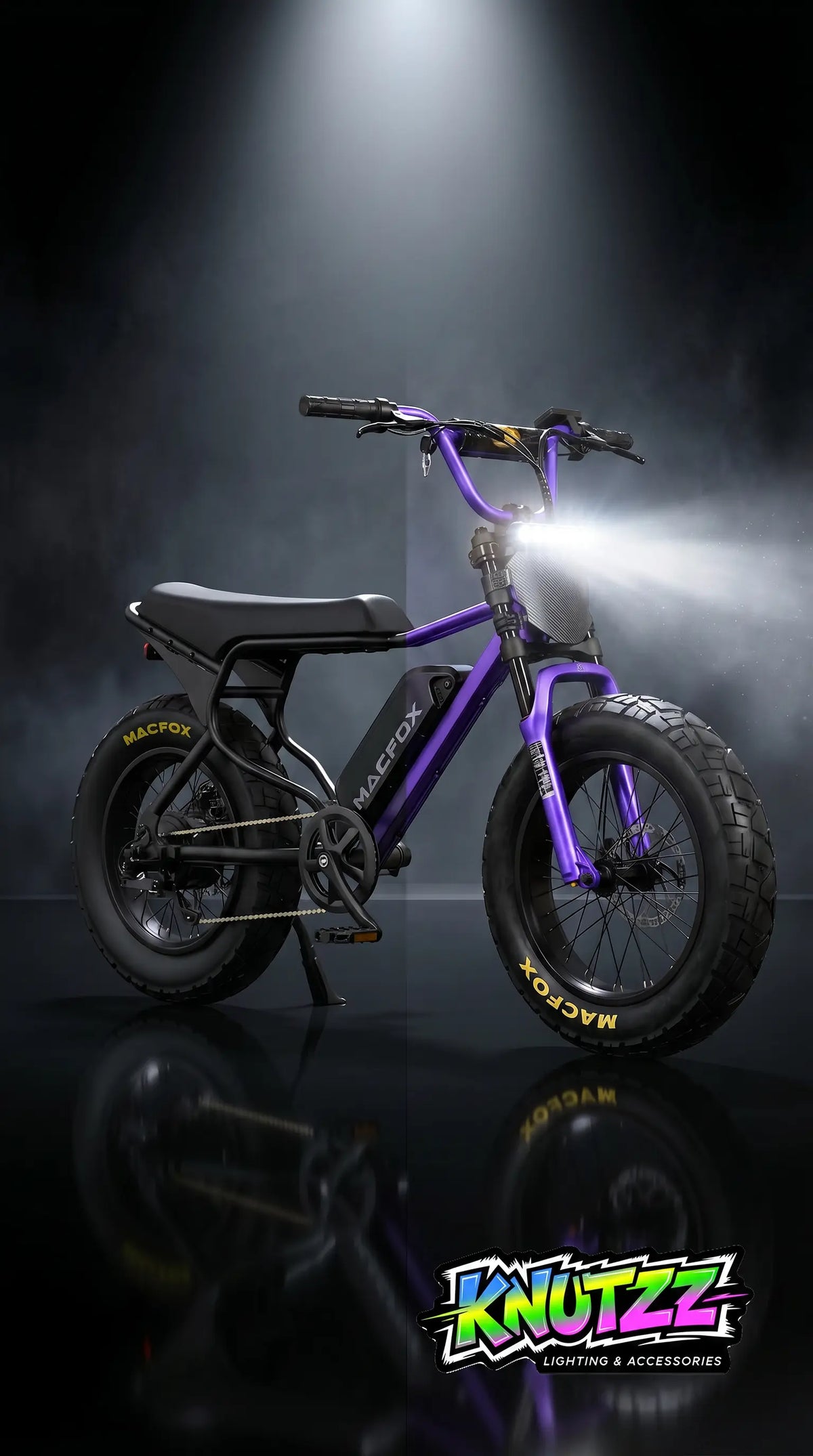

A brighter Macfox X7 should not mean cutting factory wires, chasing adapters, or turning a quick upgrade into an all-day garage project. This Macfox X7 light installation guide walks you through the clean way to mount and connect a compatible plug-and-play LED light kit, so you can keep your bike’s stock controls and get back to riding.
The goal is simple: a light setup that looks like it belongs on the bike, stays secure over rough pavement, and gives you more presence when daylight starts fading. Take your time with fitment and cable routing. Those two details separate a clean build from a light bar that rattles, shifts, or leaves wires hanging in the wind.
Before You Install Your Macfox X7 Lights
Start by confirming that your kit is built for the Macfox X7. Model-specific lighting matters because the connector type, mounting points, cable length, and controller integration can vary between e-bike platforms. A generic light may look close enough online, then leave you fabricating brackets or dealing with a connector that does not match.
Park the bike on level ground and power it fully off. If your setup has a removable battery, remove it before working around electrical connections. This is a small step, but it prevents accidental activation while you are handling plugs and routing cables near the frame.
Lay out every part before mounting anything. You should be able to identify the light assembly, mounting hardware, extension or adapter cable if included, and any zip ties or cable-management pieces. Do not force a connector just because it appears similar. Plug-and-play connections should line up correctly and seat with controlled pressure.
A basic set of tools is usually enough: the proper Allen key or socket for the mounting hardware, a small wrench if the kit uses lock nuts, and side cutters for trimming zip ties. A microfiber cloth is useful too. It keeps you from dragging grit across the fork, frame, or mounting area while you work.
Check the Mounting Area First
Before tightening hardware, hold the light in its intended position and turn the bars from lock to lock. Check for interference with brake cables, display wiring, fork movement, front fender clearance, and the tire. The X7’s front end has limited space once cables and accessories are in the mix, so a quick test fit saves time later.
You also want the beam aimed forward, not into the front tire or directly into the sky. A light mounted too low loses useful distance. One mounted too high can throw glare at oncoming riders, drivers, and pedestrians. Start with the housing level or slightly angled down, then fine-tune it after dark.
Macfox X7 Light Installation Guide: Step by Step
1. Mount the light loosely
Attach the light to the designated mounting point using the supplied hardware. Thread each bolt by hand first to make sure it is not cross-threading. Tighten it only enough to hold the light in place while you position it.
Do not crank the hardware down immediately. You may need a small adjustment after the cable is routed or after you see the beam pattern on the road. If your kit uses a bracket, make sure the bracket sits flush before final tightening. A bracket that is slightly twisted can cause vibration and make the light look off-center.
2. Route the cable along the bike’s existing wiring
Follow the factory cable path whenever possible. It gives the install a cleaner look and helps keep the new wire away from moving parts. Run the light cable along the frame or fork area with enough slack for steering, but not so much that a loop can snag on something.
Avoid sharp bends, pinch points, brake rotors, the tire, suspension movement, and areas where the cable can rub against metal over time. Turn the handlebar fully left and right again once the wire is in place. The cable should move naturally without pulling on the connector.
Use zip ties sparingly at first. Secure the cable in a few key places, test steering and fitment, then add the remaining ties. Pull the ties snug, not crushingly tight. You want the cable held in place without compressing or damaging its outer jacket.
3. Connect the plug-and-play harness
Locate the matching factory connector for the light circuit and inspect both sides before joining them. Check that the pins are clean, dry, and aligned. Line up the connector guides, then press the connection together firmly until it is fully seated.
If it does not connect easily, stop and inspect it. Do not twist, pry, or force an e-bike connector. Most installation problems come down to an incorrect plug orientation, a partially seated connector, or a kit designed for a different model.
A compatible kit from Knutzz is designed to work with the bike’s existing controls, which means you should not need to cut, splice, or guess which wire does what. That is the point of a model-specific upgrade: clean integration without the usual electrical headache.
4. Secure the wiring and finish the mount
Once the connection is seated, tuck it into a protected spot where it will not be exposed to constant tire spray, impacts, or cable tension. Keep the connection accessible enough to inspect later, but avoid leaving it dangling below the frame.
Now tighten the mounting hardware to the point where the light cannot rotate from normal vibration. Do not overtighten bolts into aluminum mounts or clamps. Firm and secure is the target. If you are unsure about torque, use the bike or kit manufacturer’s guidance rather than guessing.
Trim excess zip-tie tails cleanly. A sharp, jagged tail can catch a finger, glove, or jacket sleeve. Turn the bars lock to lock one more time and compress the front end slightly if your bike configuration allows it. The light, mount, and cable should all remain clear.
Test Before Your First Night Ride
Reinstall the battery if you removed it, power the bike on, and test the light through the stock control. Check every available setting, including high and low beam or color modes if your kit includes them. A light that powers on but does not respond correctly may have a loose connector or an incompatible configuration.
Test in a shaded garage, driveway, or after sunset so you can see the actual beam shape. Aim the light at a wall first. The beam should be centered and slightly downward, with useful coverage ahead of the bike rather than a bright hotspot pointed at eye level.
Then take a short, low-speed test ride. Watch for mount vibration, cable movement, and any contact when turning. Road chatter can reveal a loose bracket that looked fine while the bike was stationary. Make small adjustments now instead of discovering the problem halfway through a night ride.
Common Macfox X7 Light Install Mistakes
The most common mistake is rushing the cable route. A bright light is only an upgrade if the wiring stays protected. Give the cable enough room to move with the steering, and make sure it is not rubbing the tire, fork, or brake hardware.
Another is aiming the beam too high. More brightness does not automatically mean better visibility. A properly aimed beam lets you see potholes, curbs, and surface changes while staying more considerate of everyone sharing the road or trail.
Finally, do not treat fitment as optional. The Macfox X7 and X7L may look related, but light-kit compatibility can still depend on the exact connector and mounting setup. Check your bike model before ordering and before opening up the factory wiring path.
Keep the Setup Looking Fresh
A quick inspection every few weeks goes a long way. Wipe dirt from the lens, check that the mount remains tight, and look over the cable where it passes around the head tube and fork. Those are the spots most likely to see movement.
If you ride in rain, through dust, or on rough streets, inspect more often. Plug-and-play does not mean ignore it forever. It means your lighting upgrade starts clean and stays easy to service.
When the sun drops, your light setup should do more than turn on. It should look planted, point where you need it, and make the X7 feel like your bike - only brighter.
